Product Details:
|
| Model: | 7 Inch | Gear Ratio: | 57:1 |
|---|---|---|---|
| Efficiency: | 40% | Precision: | As Requested |
| Driver: | Motors | Type: | Dual Axis |
| Application: | Solar Tracking System | Color: | As Requested |
| Highlight: | Solar Tracking System Slew Drive Gearbox,Dual Axis Slew Drive Gearbox 12VDC,7inch Solar Tracking Slew Drive Gearbox |
||

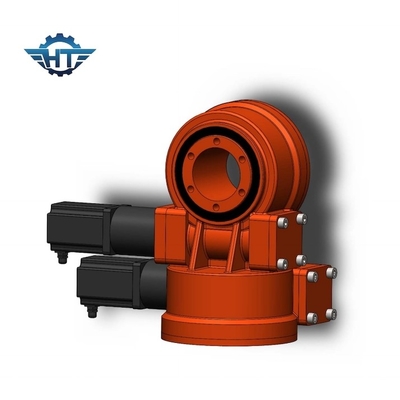

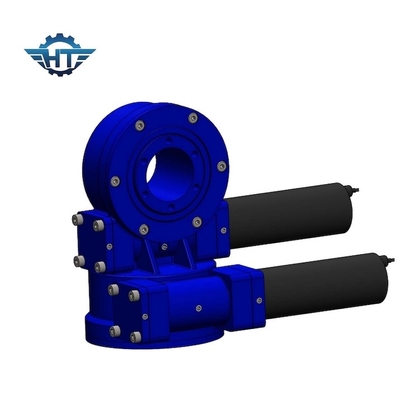

Dual Axis Slew Drive Gearbox With 12V DC Motors For Solar Tracking System
Dual Axis Slewing Drive Introduction
Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Performance Chart of SDE
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 650 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
Technical Data
| Product Name | SDE7 Slewing drive with 43Nm 24Vdc gear motors |
| Output Torque | 980 N.m ; 723 ft.lbs |
| Max Output Torque | 1938 N.m; 1429 ft.lbs |
| Tilting Moment Torque | 7000 N.m; 5163 ft.lbs |
| Holding Torque | 13200 N.m ; 9736 ft.lbs |
| Static Axial Rating | 133.20 kN ; 29943 lb |
| Static Radial Rating | 53 kN ; 11977 lb |
| Dynamic Axial Rating | 31.90 kN ; 7171 lb |
| Dynamic Radial Rating | 27.91 kN ; 6274 lb |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machiner |
Recommended Slewing Drive
| Enclosed housing slewing drive | SE1 | SE3 | SE5 | SE7 | SE9 | SE12 | SE14 | SE21 |
| Precise enclosed housing slewing drive | ZE3 | ZE5 | ZE7 | ZE9 | ||||
| Worm gear slewing drive | WE1 | WE3 | WE5 | WE7 | WE9 | |||
| Dual axis slewing drives | SDE3 | ZDE3 | SDE5 | ZDE5 | SDE7 | ZDE7 | ||
| Vertical enclosed slewing Drive | VE3 | VE5 | VE6 | VE7 | VE9 | VE12 |
